Spyder Classic Bolt to Hammer pin dimensions

I had a questions for the dimensions of the bolt to hammer connecting pin on a Kingman Spyder Classic.

Spyder hammer to bolt connecting pinI don’t have any of these pins listed currently on the site but I do have some 32 degrees Rebel pins so I thought I would compare dimensions.
http://www.baccipaintball.com/spy079.html

Spyder connecting pin 2Spyder connecting pin 3

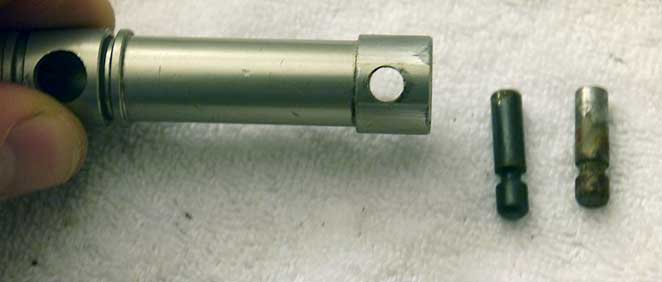

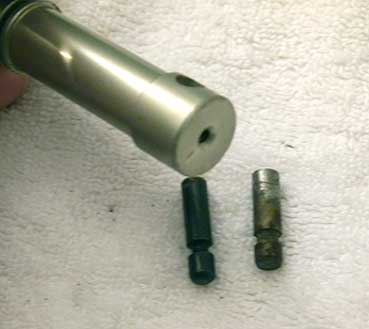

 The two pins are similar but the 32 degrees pin is slightly different dimensions.

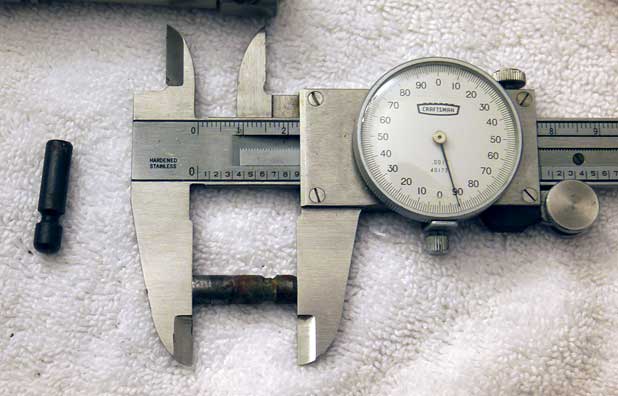

Spyder connecting pin 4Stock Kingman spyder classic bolt pin:
OD .25 inches

spyder connecting pin 5

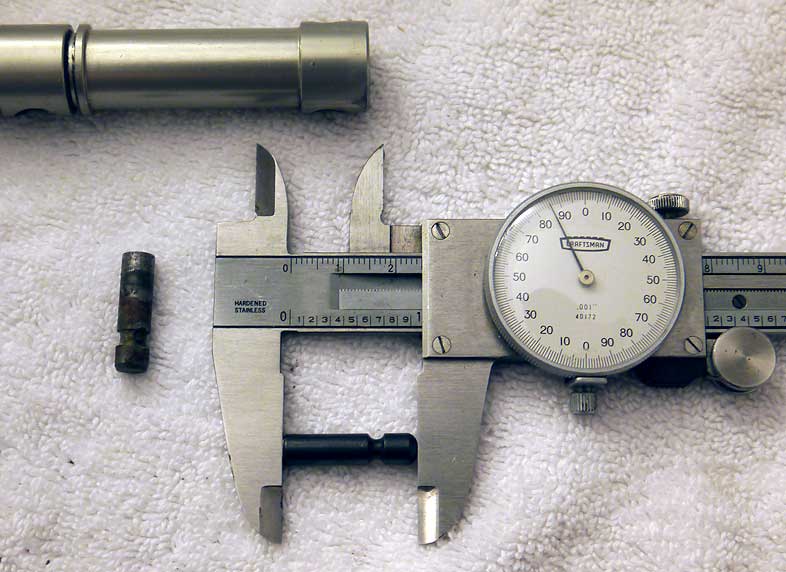

Stock Kingman spyder classic bolt pin (above):
Height ~.891

spyder connecting pin 6

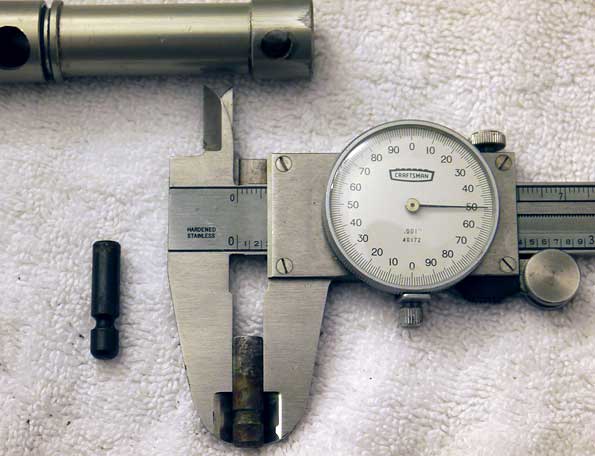

32 degrees Rebel Pin:
http://www.baccipaintball.com/spy079.html
OD. .235 inches

spyder connecting pin 7

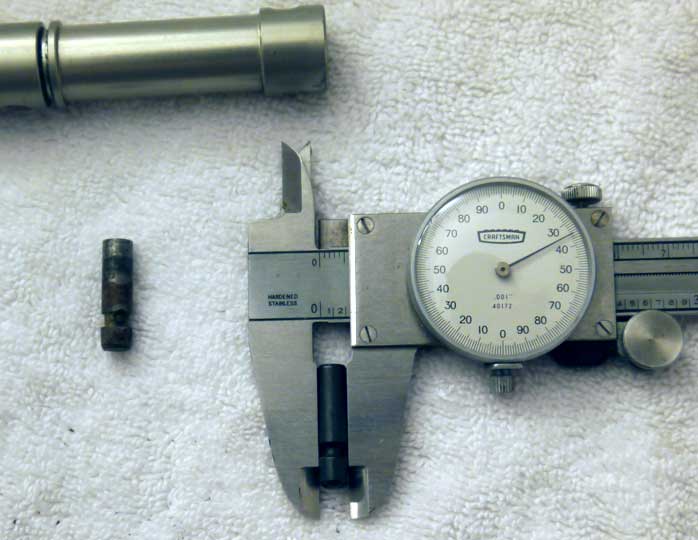

32 degrees Rebel Pin:
Height .985 inches (above)

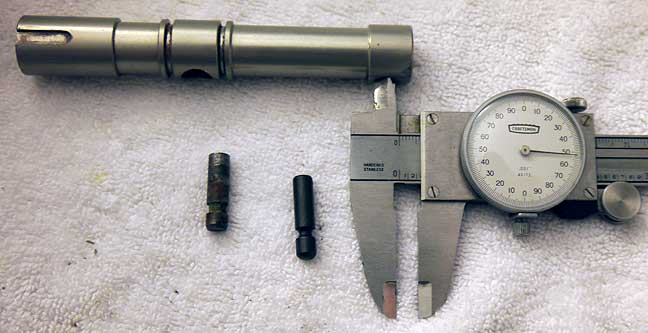

spyder connecting pin 8And the pin hole in an early stock kingman classic spyder bolt is .253.

Hope that helps someone.
