Paul’s ”RTR” Circle Pistol with a Circle Snub

Here is Paul Schreck’s Circle Pistol which uses one of his Circle Snubs.

Find Paul for sale thread for these snubs here:
http://www.mcarterbrown.com/forums/misc-paintball-items/246958-boxgun-snubs-sale-look.html

I more compatibility information on the snubs here:
https://paintballhistory.com/pauls-circle-snubs-boxgun-stock-class-breech-drop-nelson-builds

Paul built this pistol around one of his stainless ”Circle snubs” using a combination of parts including Carter Internals, a RTR Carter pump handle, RTR Carter feed, RTR Bionic Arms, a Tech T sizer kit, one of Mongo’s redux frame, rail and valve body sets.

Circle Gun
Paul’s ”Circle Gun.” A hybrid stock class nelson build around one of Paul Stainless Circle Snubs.

After assembling and fitting the parts, Paul had the project anodized Matt Bleck.

Circle Gun close up right side Circle Gun close up right side Circle Gun

┬áBy using his own shorter length snub Paul was could use the Redux’s valve body which is standard Nelspot specs instead of Carter Machine long Snub length specs.

right side view circle snub
Right side Circle Snub View
bottom side view circle snub
Bottom Snub View
bottom side view circle snub close up
Bottom view thread meat close up
top view circle snub
Top view of feed and boxgun feed hole
front view circle snub
View of ID change from thread to breech area.
thread view circle snub
View of Autococker threads.

Paul originally designed these bodies to modify classic Check It Product’s Super Stocks and Carter Machine Box Guns from one piece stainless unibody snub barrels to be able to take cocker threads and use the Tech T kits he prefers.

Circle Gun close up underside
Underside view of rail and collar
Circle Gun underside
Underside view showing engraving on Tech T kit

Above are a couple photos showing the only sign of the Tech T kit visible on this pump. Paul then found stainless barrels which he had cut to custom lengths to adapt into the Tech T kit, fitting flush with the end of the barrel.

Circle Gun close up pump handle

For Paul’s Box gun modifications I think he welds a nut to the base of the Circle Snub” and to give the front grip frame screw hole in the snub more meat. But for this pistol Paul is using a collar which help secure the frame against torque which could otherwise strip the threads (although it does feel secure without the collar) surprisingly even with only a few threads to secure the snub to the rail.

Circle Gun close up
Right side view without pump arm
Circle Gun close up front underside
Underside view of collar and rail

The above photos show the collar attaching feed and securing the snub body to the rail.

Circle Gun pump removed

The Tech T kit shown between the snub and the stainless end of the barrel. The end of the barrel is sized down to meet with the enclosed and hidden pump spring inside the RTR Carter Pump handle

Paul added some after ano milling/highlights to the rail to accentuate the stainless snub and barrel.

Circle Gun pump removed close up
Side view with pump removed
Circle Gun pump removed close up underside
base view with pump removed

Circle Gun tech t barrel kit

Tech T barrel kit
Tech T kit and stainless front
Circle Gun barrel removed
With Tech T barrel kit and front unscrewed

Paul found the Tech T barrel kits to be a great match for these snubs because the insert goes in from the front (similar to a freak) and the larger OD portion on the front side of the Tech T insert is wedges in by the stainless Cocker threaded barrel front he uses. The Tech T sizers are also super short and can be used on other cockers as well.

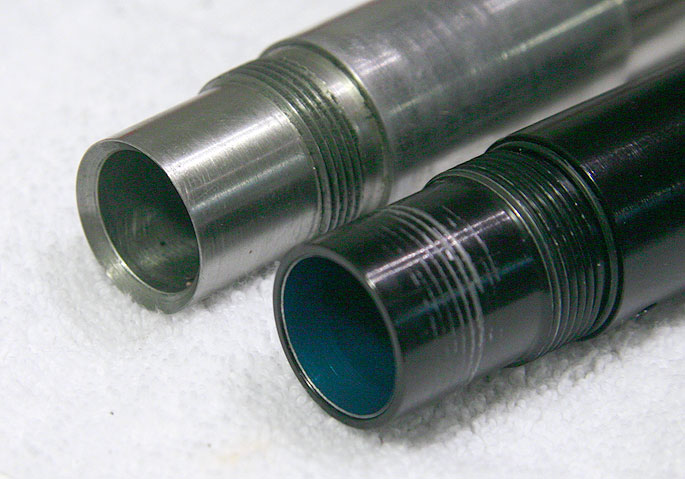

nelson barrel bevel comparison, carter cocker to tech t kit.

One downside to this approach is the Tech T kit doesn’t use as much of a beveled edge as can be found on most carters, Rangers, tasos and other removable barrel Breech drop nelsons. Breech drop nelsons have to push the ball from the body ID to the Bore ID and the bevel helps but Bore drop Nelson doesn’t use the bevel because the ball falls into the bore directly.

It might not be obvious right away but a random barrel with Freak boring has nothing to wedge the freak sizer against and prevent it from sticking to the bolt oring. A freak back could be integrated but while testing a few barrels I found that Freak backs has a slightly wider OD before the threads which hit slightly on either the snub to grip frame or top boxgun feed hole. This could easily be fixed but I still wouldn’t run a freak back unless a slight bevel was added to it.

Circle Gun front screw in body
Front grip frame screw hole
Circle Gun front screw in body top view
Front grip frame screw hole from front.
Circle Gun front screw in body top side
Front grip frame screw hole from side

The above photos show the grip frame screw into the snub grabbing what it can. Many Carter snubs don’t even have a front grip frame screw so the face that Paul’s snub was actual to retain enough of threading to catch and hold the front grip frame screw securely under the collar is pretty impressive. I still wouldn’t rely on this screw and since Paul is using a Collar he is really only counting on this screw to prevent the body from shifting while changing the position of his collar.

Circle Gun feed removed

Removing the collar makes the top threaded hole for the boxgun feed visible.

Circle gun top view feed removed
Top of snub/pistol with feed and collar removed.
Circle gun bottom view feed removed
bottom looking up view of Circle pistol/snub’s box gun feed hole.
Circle gun top view back
Top looking down view of snub/pistol with feed removed.

Another adaptation of Paul’s ”Circle Snub” would be on a Redux. The Grip frame, Rail and in grip valve Paul is using on his Circle pistol are from Mongo so with Paul’s body, a buzzard pump handle, Tech T kit (and barrel front), collar and feed a Redux could be transformed into a setup very similar to Pauls. A standard nelson back bottle could even be adapted (from a Bushmaster, Taso or lapco pump) and the setup could run backbottle.

circle gun and redux
Redux and Circle Snubs on Redux receivers.
circle gun and redux bottom
Looking at underside of rail and snub on circle pistol/snub (top) and redux (bottom).

The above photos show the length differences between Mongo’s Redux snub and Paul’s Circle Snub. The longer distance in Mongo’s Reduz Snub is because the freak back is integrated into the body resulting in a larger smaller ID area which the front grip frame screw can grab. This makes all the difference when it comes the stainless body being secured into the rail/frame/receiver without a collar.

circle gun and redux side by side
Redux (left) and Paul’s Circle Pistol (right) stripped down and side by side.

I love my Redux and it sees play more than any of my other pumps but I don’t end up changing the freak too often and barrel options are limited. Paul’s snubs on the other hands are very compatible with older after market barrels (I keep bevels in mind though). I tried several OTP barrels (G1s that take and don’t take Sizers), Brass J and J, and a carter barrel and didn’t have problems with the fit on any. The only tested barrel that didn’t slide in and thread was the freak and as I mentioned above this can be remedied by a little sanding inside the snub.

circle snub brass cocker barrel top
With brass J and J barrel attached.
circle snub brass cocker barrel top close up
With brass J and J barrel attached, top feed view.
circle snub brass cocker barrel bottom
With brass J and J barrel attached bottom view.

Above a classic Brass cocker threaded barrels is inserted into the stainless Circle Snub

circle snub carter barrel
Circle snub with Dragoon barrel, right side.
circle snub carter barrel side
Right side close up with Dragoon barrel.
circle snub carter barrel top close up
Circle snub with Dragoon barrel, top view.
circle snub carter barrel top close up
Close up of Dragoon barrel’s bevel.

Above, A Carter Cocker threaded barrel from Jonny Rohem’s Dragoon is threaded into the Circle Snub

dragoon with circle snub right
Jonny Rohem’s (Team America) Dragoon Buzzard (c. 1990?) with Paul’s circle snub above with the Dragoon’s barrel threaded in.

dragoon with circle snub left close up
Close up of Dragoon and circle snub.
dragoon with circle snub left
Dragoon and circle snub.

From the above photos of the Polished Dragoon, the length of the Circle Snub vs the Carter snub is apparently. The Circle Snub is shorter with more room on the back for the standard nelson valve body to fit.

carter buzzard snub vs circle snub top
Top view of Circle snub and carter snub.
carter buzzard snub vs circle snub left
Left view of Circle snub and carter snub.
carter buzzard snub vs circle snub bottom
Bottom view of Circle snub and carter snub.

The Circle Snub with a standard nelson valve body asa(top) and the Carter Snub with a carter Spec 1/8th npt bottomline valve body(bottom)

carter buzzard snub vs circle snub bottom
Circle snub with Standard nelson valve bodies (top) and Carter snub with Carter Spec valve bodies (bottom)

circle snub bottom
Circle snub with standard nelson spec valve bodies.
carter buzzard snub bottom
Carter snub with carter spec valve bodies.

And the snubs with their valves removed and Standard nelson spec and Carter Spec 12 gram changer change bodies next to them.
