Automag Auto Response Frame Trigger and Sear

Evan “Goon” Neale posted asking about the correct sear to a Proline Autoresponse frame so I pulled out this trigger, sear and linkage to photograph.

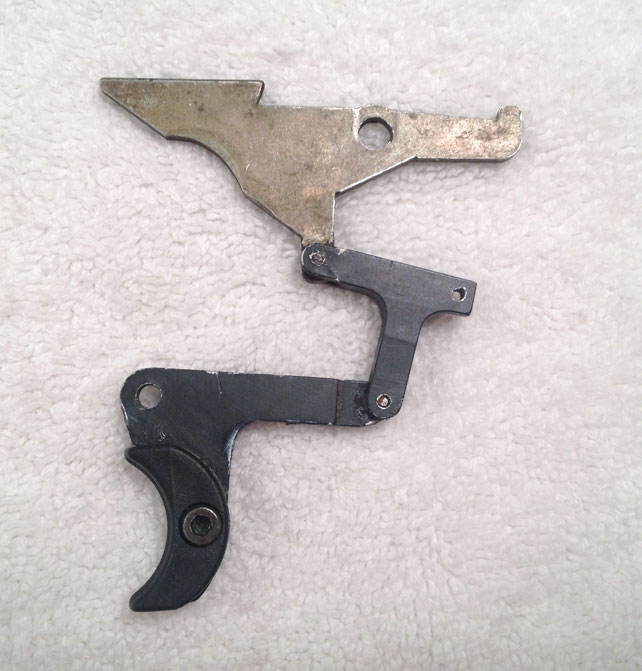

Auto Response Frame Sear and Trigger

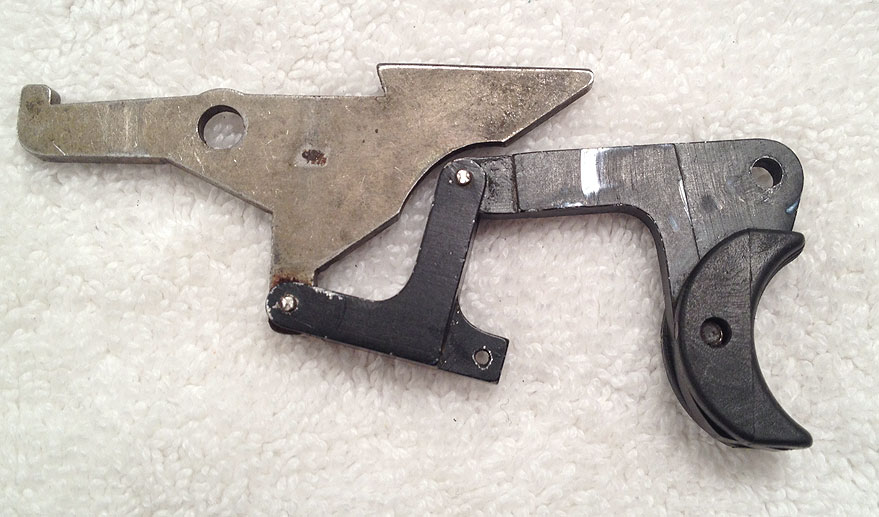

This photo shows the trigger, sear and linkage piece.

Correct positioningA spring hold the bottom of the linkage down towards the back of the frame and the round radius on the sear likely meets and pivots on the trigger?

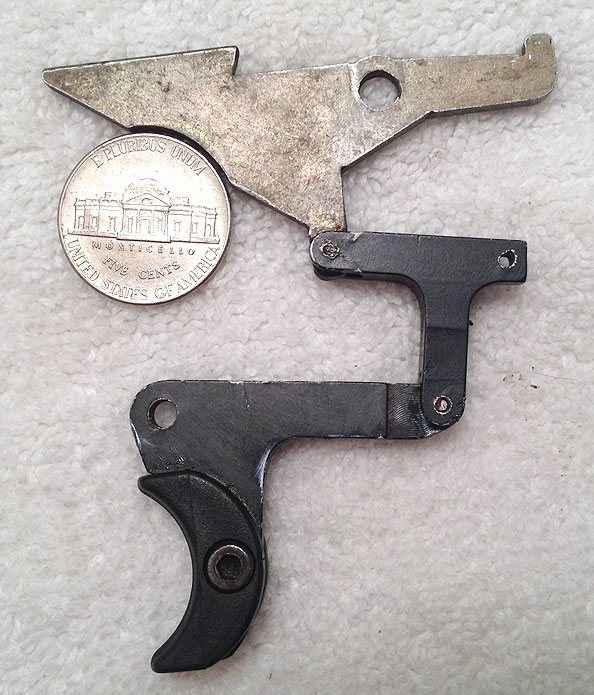

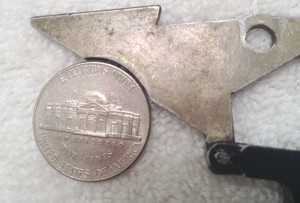

Radius cutout on sear is size of a nickelClose up of sear cut out

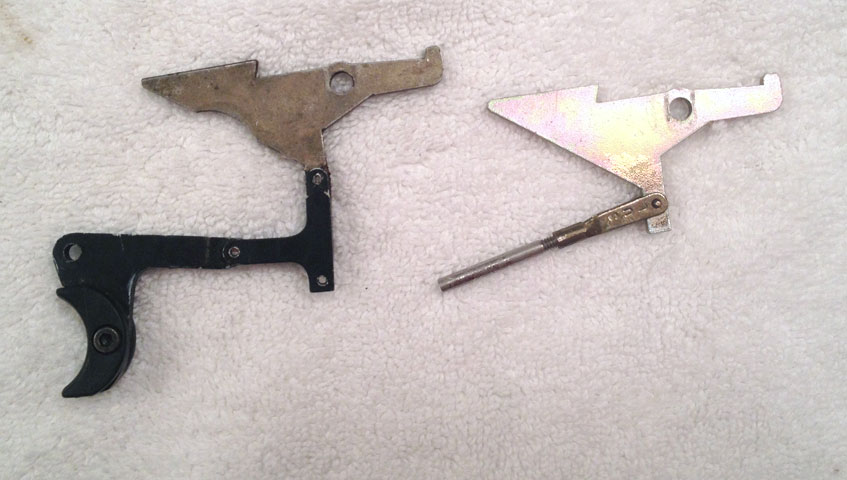

 Evan asked what radius the circular cutout on the sear had.  A nickel fit almost perfectly in the cutout.Auto Response sear compared to a standard classic sear The Auto Response Trigger, Sear and linkage on the left compared to a classic Automag sear on the right.

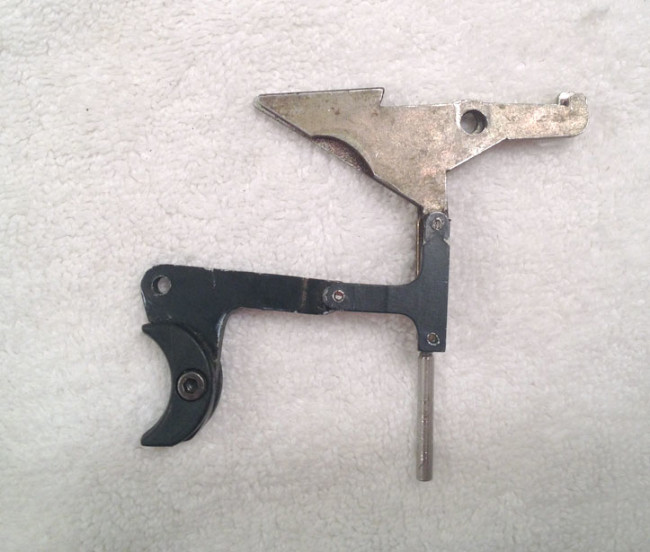

Auto Response sear and linkage on top of an Automag searThe Auto Response Sear and linkage laying on top of the Automag sear. The sear is almost identical with the exception of the cut out and the rounded bottom of the sear where the linkage pivots on the Auto Response sear.  The classic automag sear has a square base.

Base of the Auto Response sear and the Automag sear

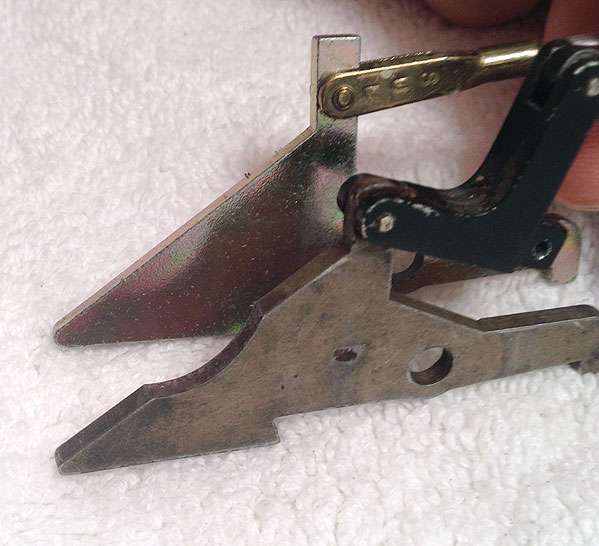

The base of the two sears compared.  The Auto Response Sear, Trigger and linkage (front) has a rounded bottom.

From what I’ve seen the Auto response frames are identical to the standard proline / Gun FX Automag trigger frames. Both early frames typically have the hole cut out of the base for the spring that hooks into the link to attach and only the trigger, sear and linkage are different.  I know my Team Sasquatch Micromag seen in the video below has the same hole to hook the linkage onto. I actually plan on inserting the linkage photographed into the Team Sasquatch mag’s frame.

Thanks to Goon for prompting me to take these photos.
